Description
xInstallation Information
This device is designed for installation inside a compatible electrical distribution board. It should be installed on a DIN rail by a qualified electrician.
Before installation:
- Turn off the main electricity supply.
- Confirm that the circuit load does not exceed 63A.
- Connect the input and output wires according to the supplied wiring diagram.
- Secure the breaker on the DIN rail.
- Configure the voltage, leakage, and reconnection settings.
- Connect the device to the Tuya Smart app through a compatible WiFi network.
Technical Specifications:

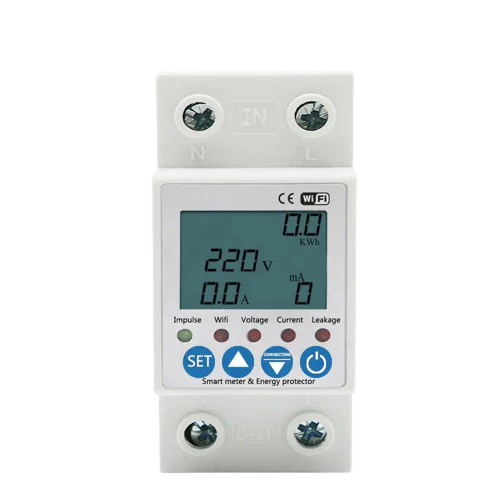

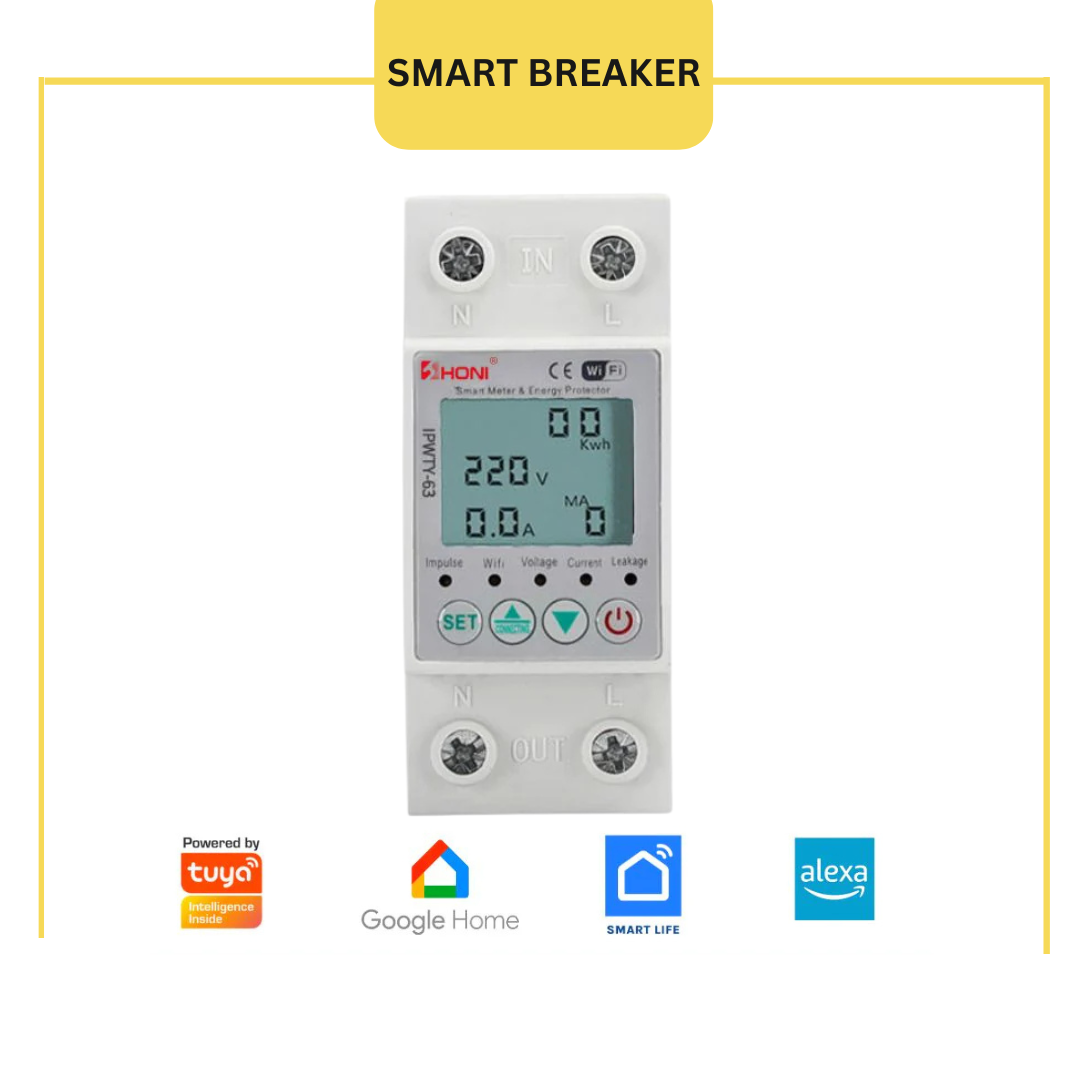

- Product Type: Smart WiFi Voltage Protector Circuit Breaker
- Number of Poles: 2 Pole
- Rated Current: 63A
- Input Voltage: AC 170-270V, 50/60Hz
- Output Voltage: AC 170-270V, 50/60Hz
- Display Type: No-Color Digital Display
- Control Methods: Physical and mobile app control
- Supported App: Tuya Smart
- Voice Assistant Support: Amazon Alexa and Google Assistant
- Installation Type: DIN rail installation
Key Features
- Overvoltage protection
- Undervoltage protection
- Earth leakage protection
- Adjustable reconnection delay
- Timer and scheduling functions
- Remote control through WiFi
- Tuya Smart mobile app support
- Physical and mobile controls
- Amazon Alexa and Google Assistant compatibility
- 2-pole design for electrical distribution boards
- Suitable for loads up to 63A
- No-Color digital display
App functions may include:
- Remote power ON/OFF control
- Timer and schedule settings
- Protection parameter configuration
- Device status monitoring
- Reconnection delay adjustment
- Device sharing with family members
- Smart automation and scene creation
Suitable Applications
The Smart WiFi Voltage Protector Breaker can be used in:
- Houses and apartments
- Offices
- Shops and cafés
- Small commercial buildings
- Distribution boards
- Electrical equipment panels
- Light industrial applications
- Circuits supplying sensitive electrical appliances
Protect your home, office, or commercial electrical system from voltage fluctuations with the Smart WiFi Voltage Protector Circuit Breaker 63A. This 2-pole protection device is designed to disconnect the electrical supply when voltage moves outside the configured safe range, helping reduce the risk of damage to connected appliances and equipment.

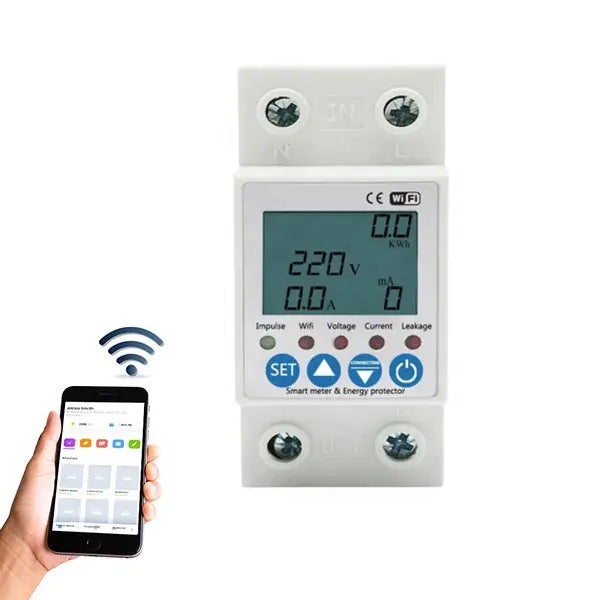

The breaker supports remote monitoring and control through the Tuya Smart app. It also works with Amazon Alexa and Google Assistant, allowing compatible functions to be controlled through voice commands.
With a current rating of up to 63A, this voltage protector is suitable for residential, office, shop, and light commercial electrical installations. Its No-Color digital display provides essential electrical information in a clear and practical format.
Overvoltage Protection
The breaker disconnects the electrical supply when the voltage rises above the configured limit. This helps protect appliances and electrical equipment from excessive voltage.
Undervoltage Protection
When the incoming voltage drops below the selected safe level, the protector can disconnect the power supply to reduce the risk of poor appliance performance, overheating, or equipment damage.
Earth Leakage Protection
The earth leakage protection function is designed to detect abnormal leakage current and disconnect the circuit when required. This adds an additional layer of protection to the electrical installation.
Reconnection Delay
After the voltage returns to the configured safe range, the breaker waits for the selected delay period before reconnecting the power. This helps protect refrigerators, air conditioners, and other compressor-based appliances from rapid power cycling.
